What are the loading and unloading mechanisms of a fabric dyeing machine?

Fabric dyeing machines are essential equipment in the textile industry, responsible for imparting vibrant colors and patterns to various fabrics. Understanding the loading and unloading mechanisms of these machines is crucial for optimizing the dyeing process, ensuring high - quality results, and improving overall efficiency. As a fabric dyeing machine supplier, I am well - versed in the intricacies of these mechanisms and will share detailed insights in this blog.

Common Types of Fabric Dyeing Machines

Before delving into the loading and unloading mechanisms, it's important to introduce some common types of fabric dyeing machines that our company offers.

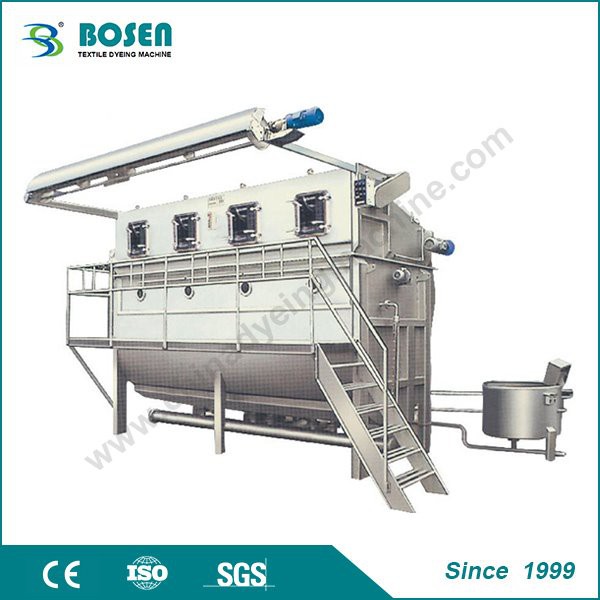

• Normal Temperature Overflow Dyeing Machine: This machine operates at normal temperatures and is suitable for dyeing a wide range of fabrics, especially those that are sensitive to high temperatures. It uses an overflow mechanism to ensure uniform dyeing. You can learn more about it here.
• High Temperature Dyeing Machine: Designed for fabrics that require high - temperature dyeing processes, such as polyester. This machine can withstand high pressures and temperatures to achieve deep and long - lasting colors. Check out our High Temperature Dyeing Machine for more details.
• HTHP Double Cylinder Soft Flow Dyeing Machine: The High - Temperature High - Pressure (HTHP) Double Cylinder Soft Flow Dyeing Machine is ideal for delicate fabrics. It provides a soft flow of the dyeing liquor, reducing mechanical damage to the fabric. Explore this machine here.

Loading Mechanisms

Manual Loading

Manual loading is one of the most basic and traditional methods. In this process, workers carefully place the fabric into the dyeing machine. This method is often used for small - scale production or when dealing with delicate and irregularly - shaped fabrics. Workers need to ensure that the fabric is evenly spread and not tangled to avoid uneven dyeing. They may use tools such as hooks or rods to guide the fabric into the machine. However, manual loading is labor - intensive and time - consuming, and the quality of loading can vary depending on the worker's skill level.

Automatic Loading Systems

For large - scale textile production, automatic loading systems are more commonly used. These systems can significantly improve efficiency and consistency.

• Conveyor Belt Loading: A conveyor belt is used to transport the fabric from the storage area to the dyeing machine. The fabric is placed on the conveyor belt, which moves it steadily towards the machine's inlet. Sensors can be installed along the conveyor belt to detect the position and quantity of the fabric, ensuring that the correct amount of fabric is loaded into the machine. This system is suitable for continuous - type dyeing machines, where a constant supply of fabric is required.
• Roller - Based Loading: In roller - based loading systems, rollers are used to guide the fabric into the dyeing machine. The fabric is wound around a roller at the beginning, and as the rollers rotate, the fabric is gradually fed into the machine. This method is often used for loading long lengths of fabric, such as in the dyeing of large - scale textile rolls. The speed and tension of the rollers can be adjusted to ensure smooth and even loading.

Pre - Treatment and Loading Integration

In some advanced dyeing processes, pre - treatment steps are integrated with the loading mechanism. For example, the fabric may be pre - wet or pre - treated with chemicals before being loaded into the dyeing machine. Specialized equipment can be used to perform these pre - treatment steps inline with the loading process. This not only saves time but also ensures that the fabric is in the optimal state for dyeing, leading to better color fastness and uniformity.

Unloading Mechanisms

Manual Unloading

Similar to manual loading, manual unloading involves workers removing the dyed fabric from the machine. This method is often used when the fabric needs to be carefully inspected or when dealing with small batches. Workers need to handle the dyed fabric gently to avoid any damage or color transfer. They may use racks or trolleys to collect the unloaded fabric for further processing, such as drying or finishing.

Automatic Unloading Systems

Automatic unloading systems are more efficient and are widely used in large - scale production.

• Ejection Systems: Some dyeing machines are equipped with ejection systems. After the dyeing process is completed, the machine uses air pressure or mechanical force to eject the dyed fabric out of the machine. This method is fast and can quickly remove the fabric from the dyeing chamber. However, it needs to be carefully calibrated to ensure that the fabric is ejected without being damaged.
• Conveyor - Based Unloading: Conveyor belts can also be used for unloading. Once the dyeing is finished, the conveyor belt moves the dyed fabric out of the machine and transports it to the next processing area. This system is seamless and can be integrated with other production processes, such as drying or folding.
• Robotic Unloading: In highly automated dyeing plants, robotic arms are used for unloading. These robots can be programmed to pick up the dyed fabric with precision and place it in the appropriate location. Robotic unloading offers high accuracy and can work continuously, improving overall production efficiency.

Factors Affecting Loading and Unloading

Several factors can affect the efficiency and quality of the loading and unloading processes.

Fabric Type

Different fabric types have different characteristics, such as weight, thickness, and elasticity. Delicate fabrics like silk require more gentle handling during loading and unloading to avoid damage, while heavier fabrics like denim can withstand more mechanical force. The type of fabric also affects the choice of loading and unloading mechanisms. For example, stretchy fabrics may require a more flexible loading system to prevent distortion.

Machine Design

The design of the dyeing machine itself plays a crucial role. Machines with a larger dyeing chamber may require more complex loading and unloading systems to ensure that the fabric is evenly distributed and removed. The shape of the machine's inlet and outlet also affects the ease of loading and unloading. Some machines are designed with a straight - through design, which makes the loading and unloading process more straightforward, while others may have a more complex internal structure that requires specialized mechanisms.

Production Scale

The scale of production is another important factor. Small - scale production may rely more on manual methods, while large - scale production demands highly automated loading and unloading systems. Automated systems can handle large volumes of fabric quickly and consistently, reducing labor costs and improving productivity.

Maintenance and Optimization of Loading and Unloading Mechanisms

Regular maintenance of the loading and unloading mechanisms is essential to ensure their proper functioning. This includes cleaning the conveyor belts, lubricating the rollers, and checking the sensors and actuators in automatic systems. Any signs of wear or damage should be addressed promptly to prevent breakdowns and ensure the quality of the dyeing process.

To optimize the loading and unloading processes, continuous improvement efforts can be made. This may involve adjusting the speed and tension of the loading and unloading systems based on the fabric type and production requirements. Additionally, data analytics can be used to monitor the performance of these mechanisms, identify bottlenecks, and make informed decisions for further optimization.

Conclusion

The loading and unloading mechanisms of fabric dyeing machines are complex and play a vital role in the textile dyeing process. As a fabric dyeing machine supplier, we understand the importance of providing high - quality and efficient loading and unloading solutions. Whether you are a small - scale textile manufacturer or a large - scale production plant, choosing the right loading and unloading mechanisms can significantly improve your production efficiency, reduce costs, and enhance the quality of your dyed fabrics.

If you are interested in our fabric dyeing machines and want to learn more about the loading and unloading mechanisms or discuss your specific requirements, we invite you to contact us for a procurement consultation. Our team of experts is ready to provide you with detailed information and customized solutions to meet your needs.
